Home > Products > automatic car wash machine >Bus/truck washing machine(CB-740)

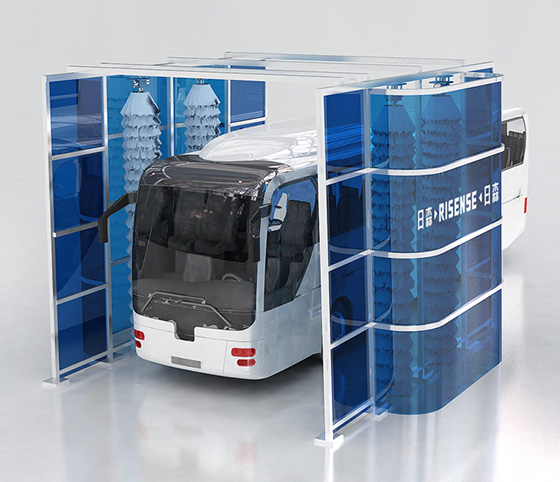

Bus/truck washing machine(CB-740)

Description:

With  2 long brushes, 2 short brushes, total 4 nylon brushes.

Features:

Though type wash machine, high pressure water, shampoo

Equipment Parameter

Model

CB740

(Drive- through)

Machine dimension

6241x5729x4100mm

Assembling range

/

Available size for car

L(No limited)≤3000x3200mm

Main voltage

380v 3phase 50HZ

Total power

6.4kw

Water supply

DN25mm water flow rate≥120L/min

Air pressure

0.75-0.9MPa Air flow rate≥0.6m³/min

Shampoo consumption

25-30ml/car

Washing time

4’/car

Car wash capacity

12-15cars/hour

Top brush

/

Big side brush

4 set


Equipment Advantages

1.With  2 long brushes, 2 short brushes, total 4 nylon brushes.

2.With pre-wash, shampoos, brushes wash, final rinse washing.

3.Bus front, rear, both sides and chassis to wash.

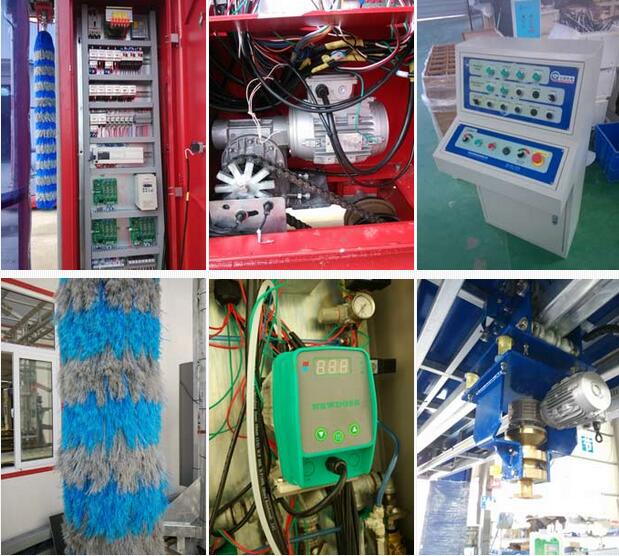

4.PLC control systems&Touch screen pannel.

5. Trafic light on the machine to indicate the machine to readiness.

6.Proximity swith and photo sensors for activation of washing bus.

7.Water proof  IP56 Siti brand motor on brushes.

8.All bearing and components with high end quality.

9. Hop-dip galvanized steel frame keep the whole machine antirust.

10.With one-site installation and operate training for free.
