Car washer product

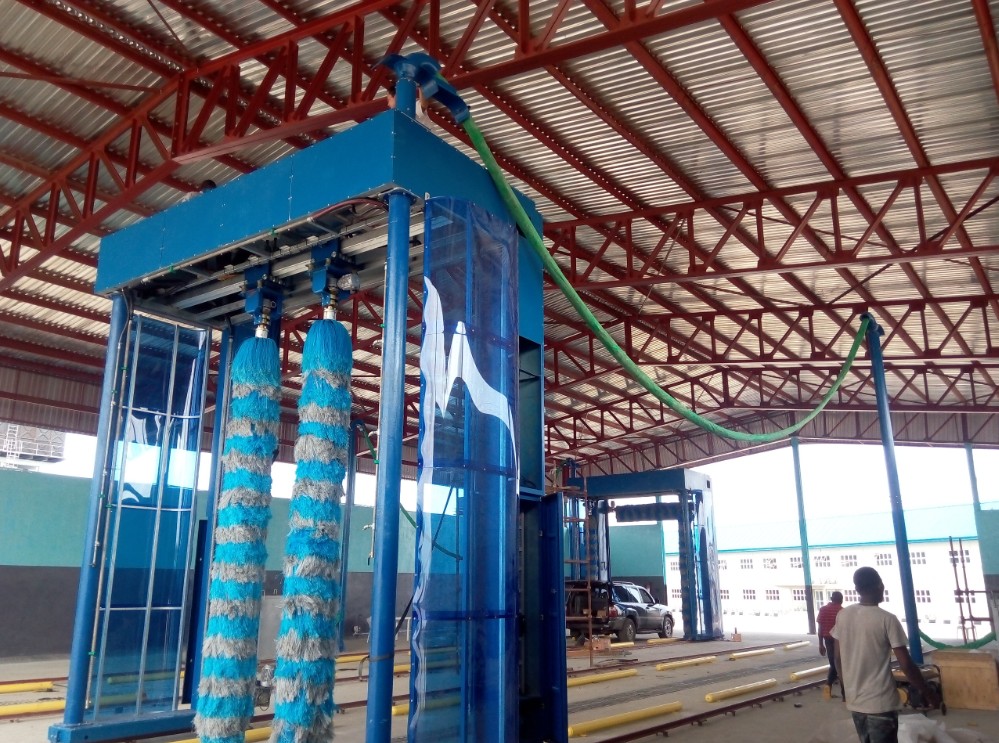

Bus/truck wash equipment（CB-720）
Description:
With 2 long brushes, total 2 nylon brushes.
Features:
1.With 2 long brushes, total 2 nylon brushes.
2.With pre-wash, shampoos, brushes wash, final rinse washing.
3.Bus front, rear, both sides and chassis to wash.

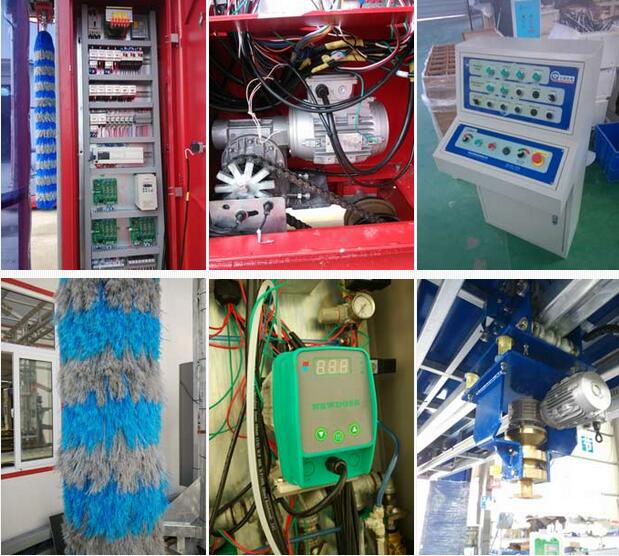

4.PLC control systems&Touch screen pannel.
5. Trafic light on the machine to indicate the machine to readiness.
6.Proximity swith and photo sensors for activation of washing bus.
Equipment Parameter
Model | CB-720 (Reciprocating) |
Machine dimension | 2949x5114x7300mm |
Assembling range | 21000x6580mm |
Available size for car | 14000x2600x4200mm |
Main voltage | 380v 3phase 50HZ |
Total power | 8.25kw |
Water supply | DN25mm water flow rate≥120L/min |
Air pressure | 0.75-0.9MPa Air flow rate≥0.6m³/min |
Shampoo consumption | 25-30ml/car |
Washing time | 4’/car |
Car wash capacity | 12-15cars/hour |
Top brush | / |
Big side brush | 2 set |
Equipment Advantages
1. Can identify the car model with photoelectric and approaching sensors.
2. Hot-dip galvanized frame can keep the whole machine stable and long life use.
3. PLC electronic control panels system can easy to operate and maintain.
4. The dovetail foam brush makes the car washing more quiet and clean.
5. High quality control systems, motors and pumps from Japan can keep the car wash running with great performance in any conditions.
6. The high sensor on the top brush can keep the bus from damage.
7. The motor with IP67 make the machine work well in the water condition.
8. Fully automatic wash rolls over the rails and easy to install, operate use and maintain.
9. With on-site installation and operate training for free and long time quality guarantee to whole car wash.
